Product Details
＋
1. It has advanced technology 4-frequency GSM 850/900/1800/1900 MHz which can work worldwide.
2.Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor
any movable equipment by SMS, APP and Internet .
3. Application: Rental vehicles, credit vehicles, motorcycle, car, electric bike, scooter, atv,
passenger vehicles, taxis, truck, etc.
Main Function:
1. Real-time tracking.
2. Vibration/Displacement/Low battery/Power off/over speed alert.
3. Main power cut off alert.
4. ACC detection .
5. Geo-fence.
6. History Route .
7. AGPS locating.
Item Secification:
Electrical Character:
Power Supply: Backup Battery.
Work Voltage: DC 9V - 75V.
Work Current: 12V/30MA - 60MA.
Sleep Current: 12V/5MA - 15MA.
Power: 0.36W.
Battery Capacity: 140mAH(3.7V Polymer Battery).
Environment Character:
Work Temp: -20℃ - 70℃.
Storage Temp: -30℃ - 80℃.
Work Humidity: 5% - 95%.
Band: 2G: 850/900/1800/1900MHZ.
SIM card: Standard SIM card.
Aerial: Internal.
GPS/BD Positioning Character: Module Brand/Chip Model ZKMicro AT6558D.
Cold Start: Average 32S
Hot Start: Average 1S.
Sensitivity (tracking) : -162DBM.
Aerial: Internal.
External Port: I/OH-IN 1 channel（ACC）.
Shape: Dimension: 90mm * 52mm * 20mm(L x W x H).
Housing Material: ABS plastic.
IP Range: IP67.
Note:
- If you want to change the timezone of tracker, please feel free to livechat with our online
customer service,attach the ID number on tracker and the timezone you want to change.
- If you want to link serval trackers at the same account, livechat with our online customer service,
attach the ID number on the several trackers and the acount username you want to set.
1. The tracking wesite and app are permanent and free of charge.
Professional installation is highly recommended.
2. Please check the size carefully before making payment.

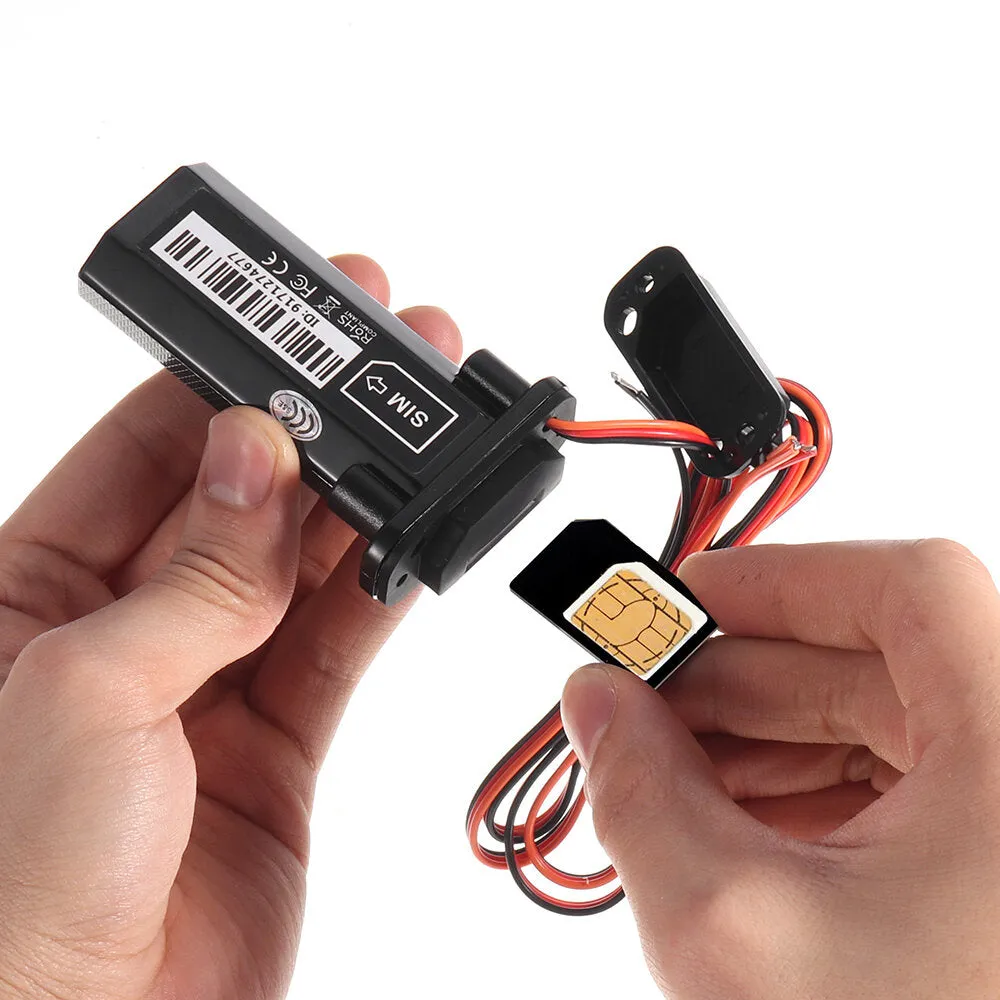

3. Prepare a 2G GSM SIM card which can support GSM and GPRS into the GPS Tracker.In many countries,
the 3G 4G SIM card which can down support 2G&GPRS is fine too.
Package Included:
1 X GPS Tracker.
1 X User Manual.
1 X Sticker.
2 X Hook& Loops.
2.Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor
any movable equipment by SMS, APP and Internet .
3. Application: Rental vehicles, credit vehicles, motorcycle, car, electric bike, scooter, atv,
passenger vehicles, taxis, truck, etc.
Main Function:
1. Real-time tracking.
2. Vibration/Displacement/Low battery/Power off/over speed alert.
3. Main power cut off alert.
4. ACC detection .
5. Geo-fence.
6. History Route .
7. AGPS locating.
Item Secification:
Electrical Character:
Power Supply: Backup Battery.
Work Voltage: DC 9V - 75V.
Work Current: 12V/30MA - 60MA.
Sleep Current: 12V/5MA - 15MA.
Power: 0.36W.
Battery Capacity: 140mAH(3.7V Polymer Battery).
Environment Character:
Work Temp: -20℃ - 70℃.
Storage Temp: -30℃ - 80℃.
Work Humidity: 5% - 95%.
Band: 2G: 850/900/1800/1900MHZ.
SIM card: Standard SIM card.
Aerial: Internal.
GPS/BD Positioning Character: Module Brand/Chip Model ZKMicro AT6558D.
Cold Start: Average 32S
Hot Start: Average 1S.
Sensitivity (tracking) : -162DBM.
Aerial: Internal.
External Port: I/OH-IN 1 channel（ACC）.
Shape: Dimension: 90mm * 52mm * 20mm(L x W x H).
Housing Material: ABS plastic.
IP Range: IP67.
Note:
- If you want to change the timezone of tracker, please feel free to livechat with our online
customer service,attach the ID number on tracker and the timezone you want to change.
- If you want to link serval trackers at the same account, livechat with our online customer service,
attach the ID number on the several trackers and the acount username you want to set.
1. The tracking wesite and app are permanent and free of charge.
Professional installation is highly recommended.
2. Please check the size carefully before making payment.
3. Prepare a 2G GSM SIM card which can support GSM and GPRS into the GPS Tracker.In many countries,
the 3G 4G SIM card which can down support 2G&GPRS is fine too.
Package Included:
1 X GPS Tracker.
1 X User Manual.
1 X Sticker.
2 X Hook& Loops.
